Ka-band Pulse Magnetron 35 GHz

Insight Product Co. 's 35 GHz pulse magnetron provides up to 16 kW of output power.

We offer standard and custom built pulse magnetrons. Insight Product Co. supplies unique magnitrons with unifilament cathode, providing instant readiness of equipment and high reliability.

Specifications for IP Mag-498

Main Parameters

Frequency (GHz)

34.7-35.3

Peak Power Output (kW)

16

Anode Voltage, kV

11-12.5

Cathode heating voltage, V

nonincandescent

Electric characteristics

Anode Current, amps

8

Setup time, s

0.5

Pulse Width, microseconds

0.45-0.55

VSWR, max

1.3

Mechanical characteristics

Shelf life, years

15

Weight, Kg

0.36

Cooled

Requires air cooling

Construction

packaged

Environmental characteristics

Temperature (operating)

-60...+80 degrees Celsius

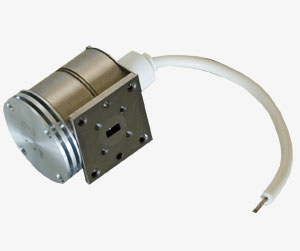

Photos of IP Magnetron 498 (34.7-35.3 GHz)





In a serial production our magnetrons both with the fixed frequency and with frequency tuning (in a range to 10 % from face value) including fast electric tuning of frequency from " impulse to impulse" and fine precision adjustment of the frequency.
